FACTORY CAPABILITY

Factory capabilities

Equipment, production scale and quality control capacity that let GT TECH deliver from one-off parts to repeat production.

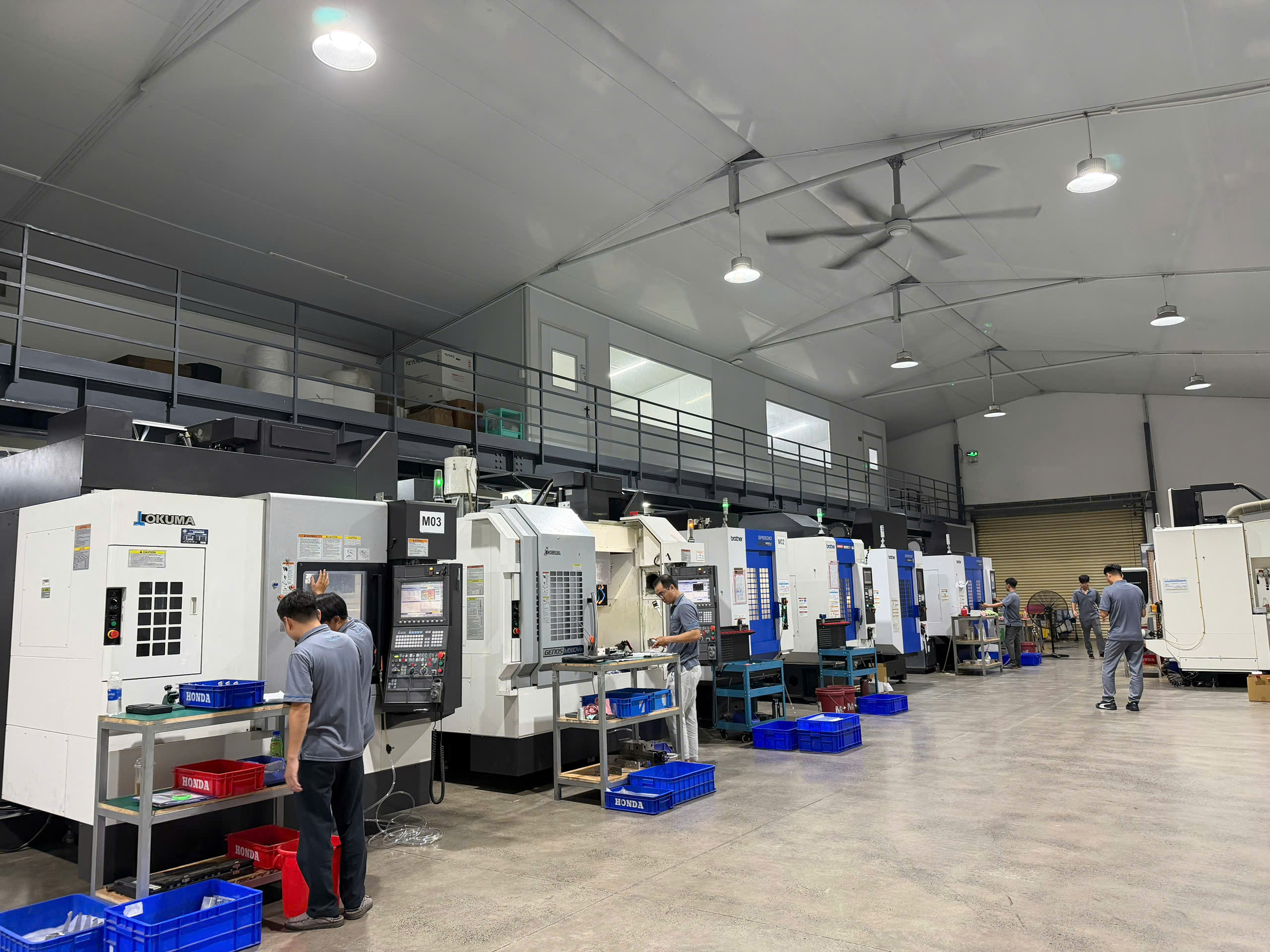

CNC machining area at the GT TECH factory

CAPABILITIES OVERVIEW

Capabilities overview

What GT TECH can do in-house.

5-axis CNC milling, reaching multiple faces in a single setup
3-axis CNC milling on Brother SPEEDIO, Okuma and DMG MORI machines
CNC turning of rotational parts on Okuma lathes
CMM inspection in a dedicated air-conditioned measuring room
2D and 3D drawings accepted, machined to the customer technical requirement
Production from one-off parts to monthly repeat batches
Replacement parts reproduced from an old sample when no drawing exists
Quality management system certified to ISO 9001:2015

CNC CAPABILITY

CNC machine capability

The GT TECH shop floor runs CNC milling and turning machines from Brother, Okuma and DMG MORI, laid out in process cells so parts travel the shortest distance between operations.

CNC MILLING

Machining centres

The milling cell combines vertical machining centres with a 5-axis machine. Five-axis machining reaches several faces in a single setup, which cuts the number of re-fixturings and holds positional accuracy between the faces of a part. The Brother SPEEDIO machines change tools and traverse quickly, suiting small and medium parts at steady volume, while the Okuma and DMG MORI machines take larger parts and heavier cuts.

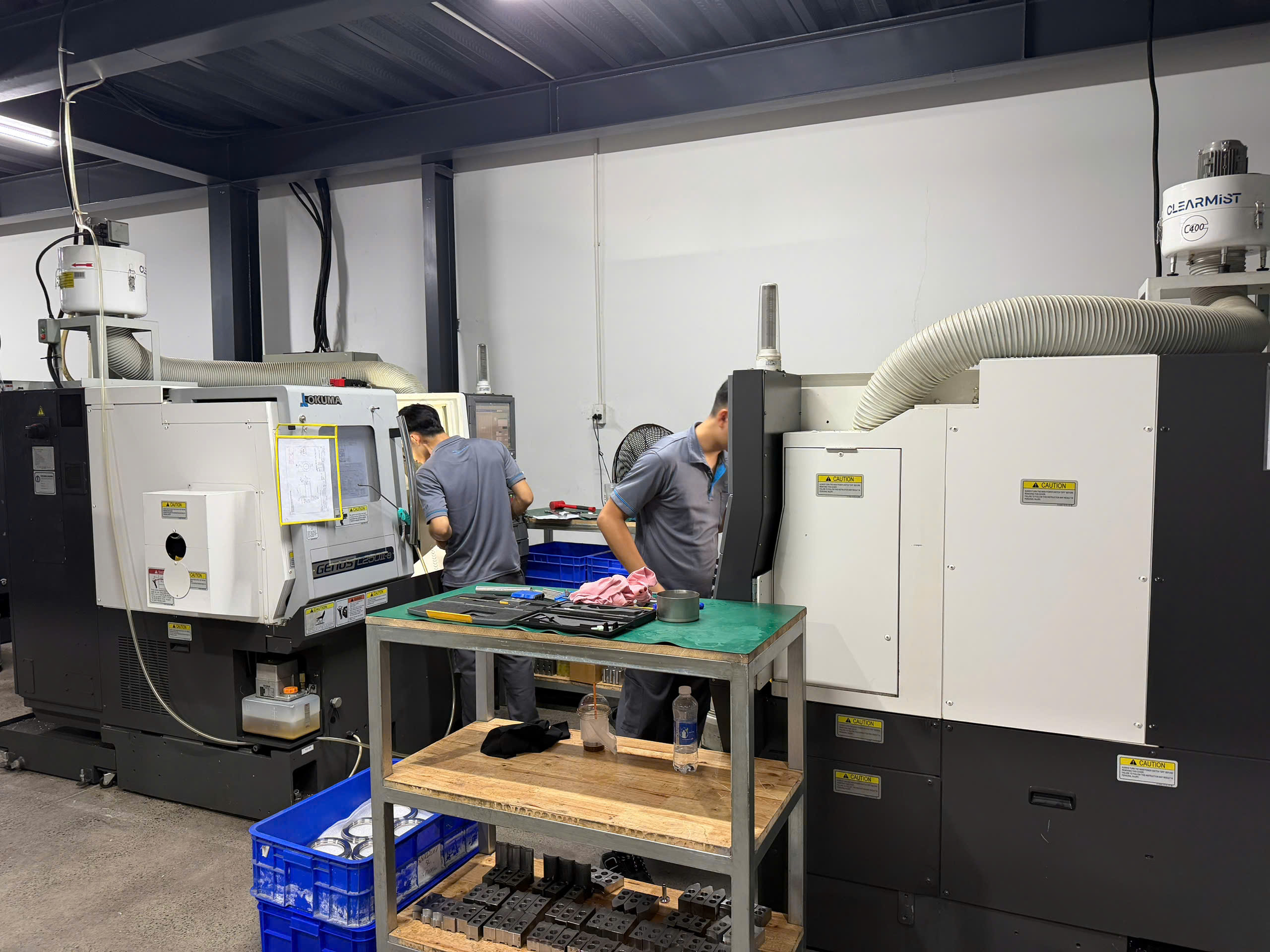

CNC TURNING

CNC lathes

The turning cell handles rotational parts: shafts, bushings, tubes and threaded components. The Okuma lathes cover both one-off parts and monthly repeat batches. Every machine carries mist extraction to keep the shop environment clean and stable.

Machine list

Brand	Machine
Brother	SPEEDIO U500Xd2-5AX
Brother	SPEEDIO U500Xd1
Brother	SPEEDIO H550Xd1M02
Brother	SPEEDIO M200X
Okuma	GENOS M460VM03

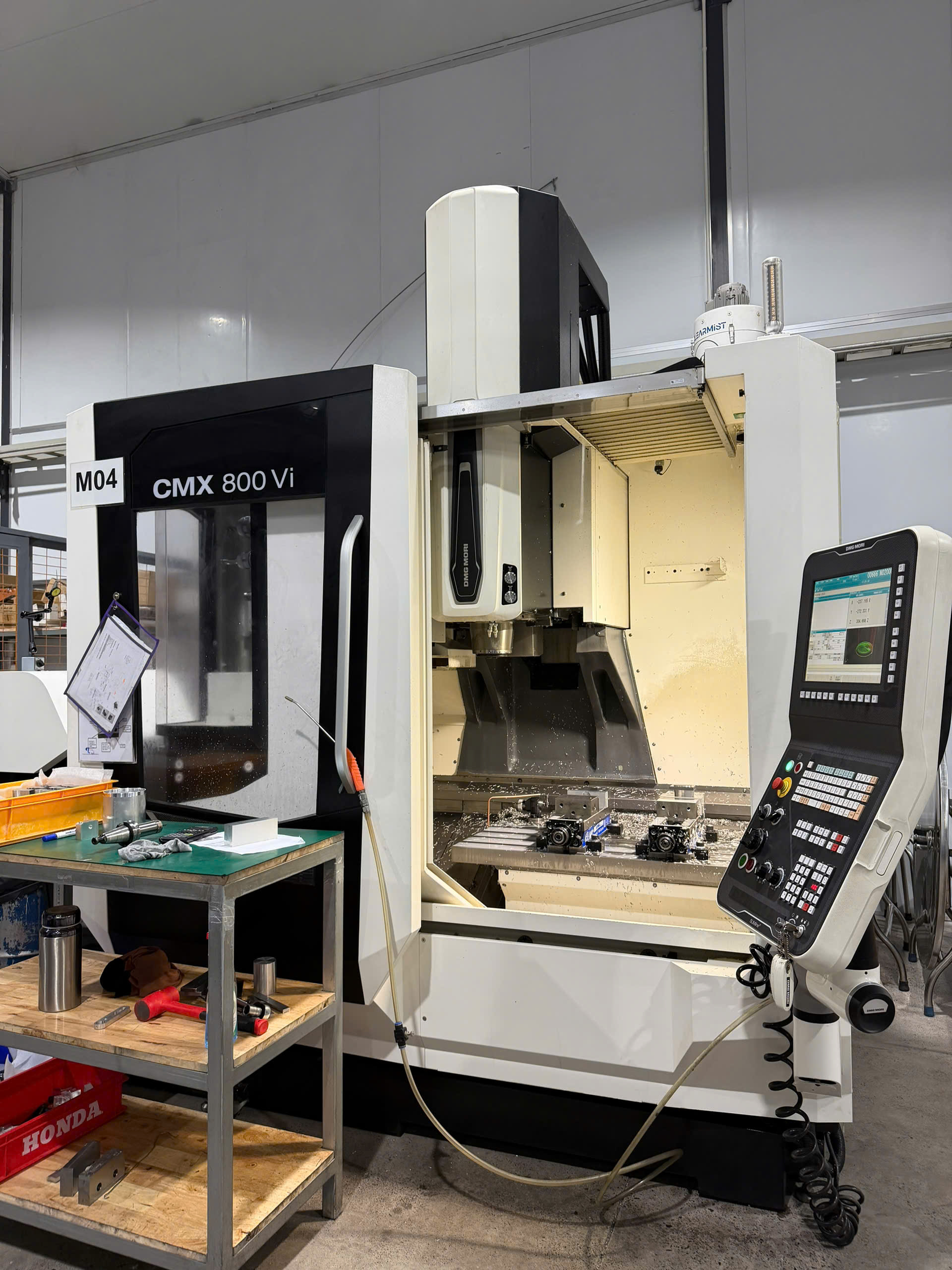

DMG MORI	CMX 800 ViM04

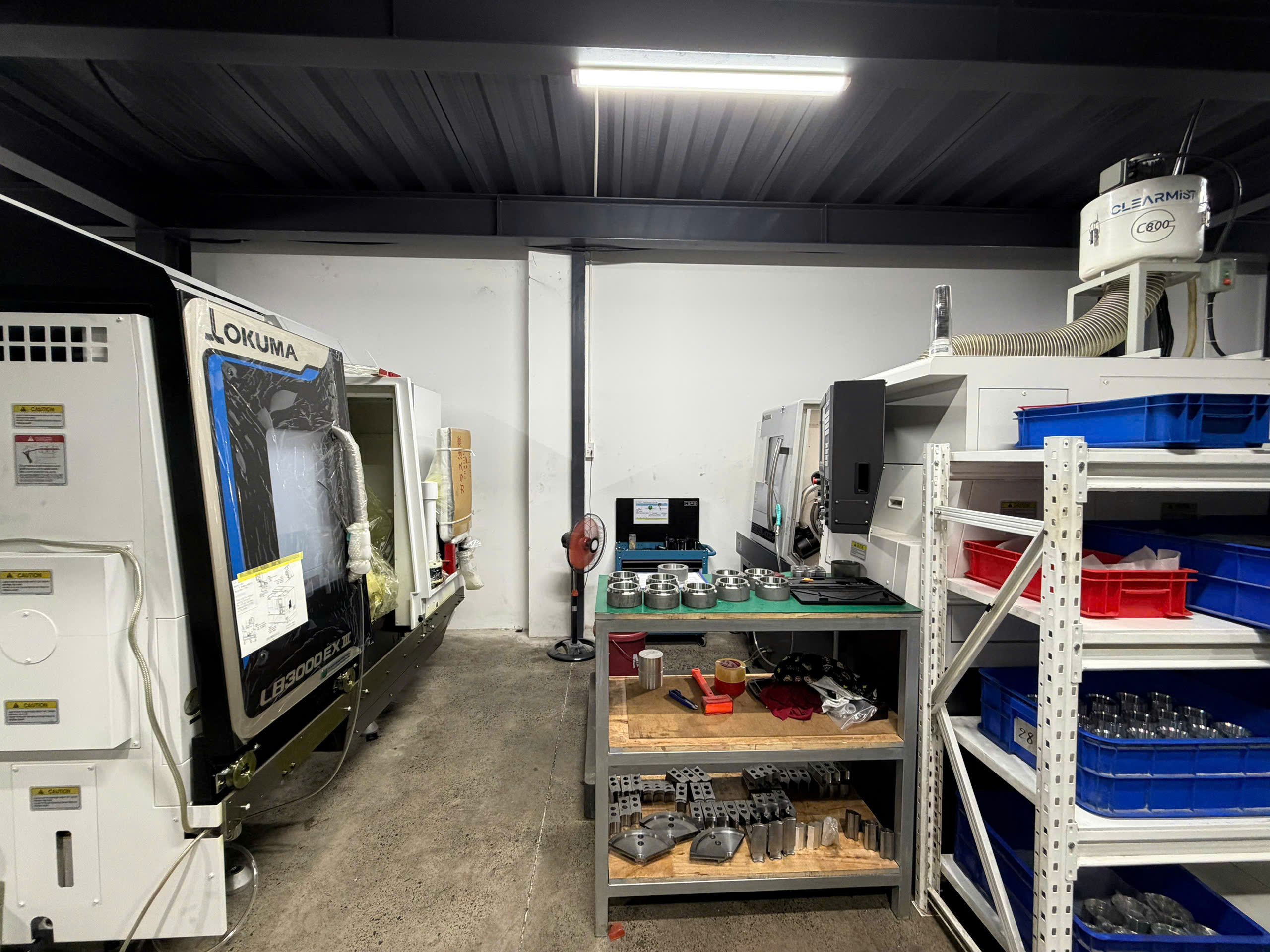

Okuma	LB3000 EX III
Okuma	GENOS L250II-e

How we run it

Each machine carries its own control tag so current jobs and maintenance schedules stay traceable.
Machining programs are prepared in advance and archived, so repeat orders run to the same parameters as the previous batch.
Machines run in shifts, with milling and turning cells coordinated for parts that need both operations.

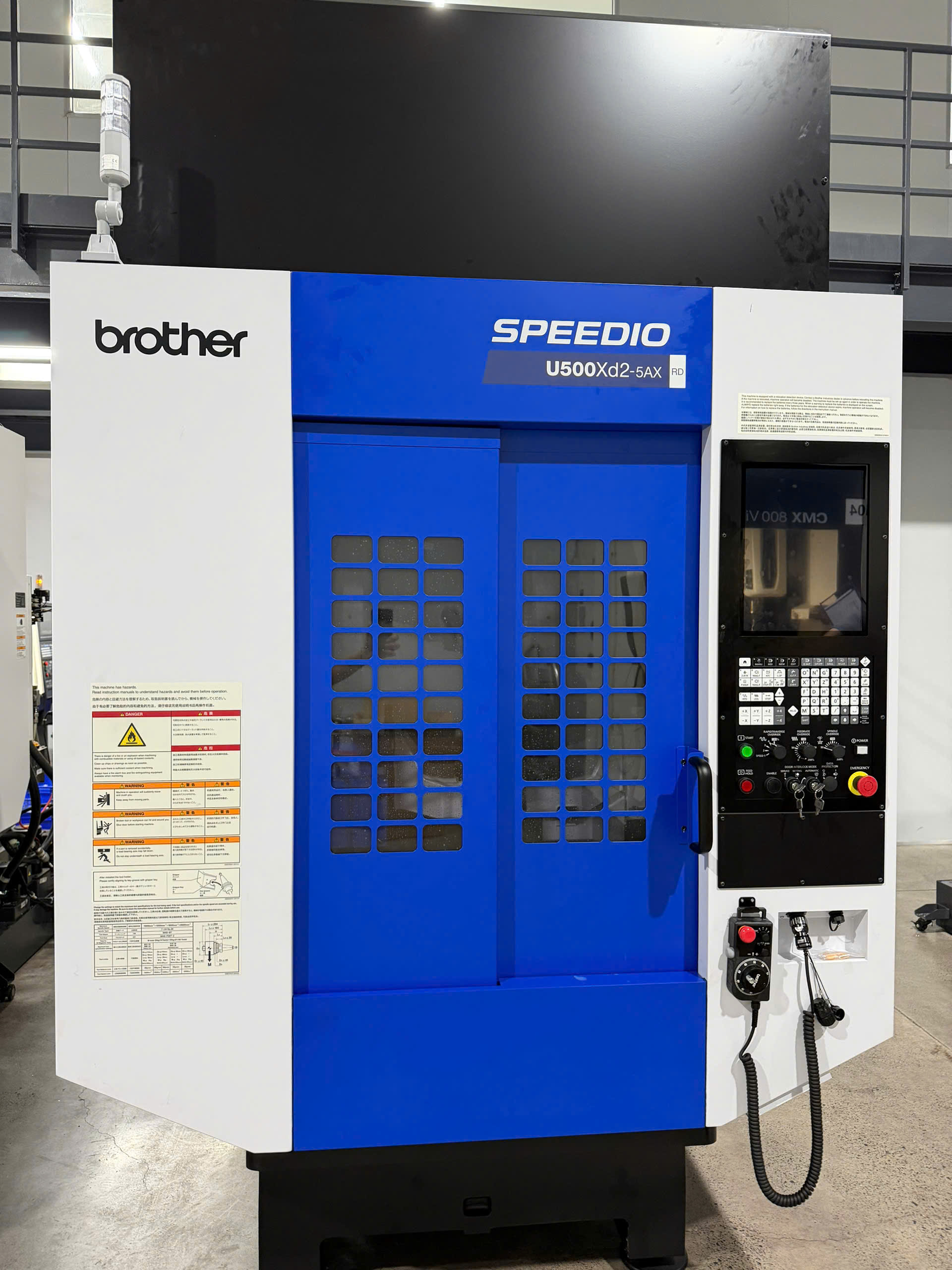

Brother SPEEDIO five-axis machining centre

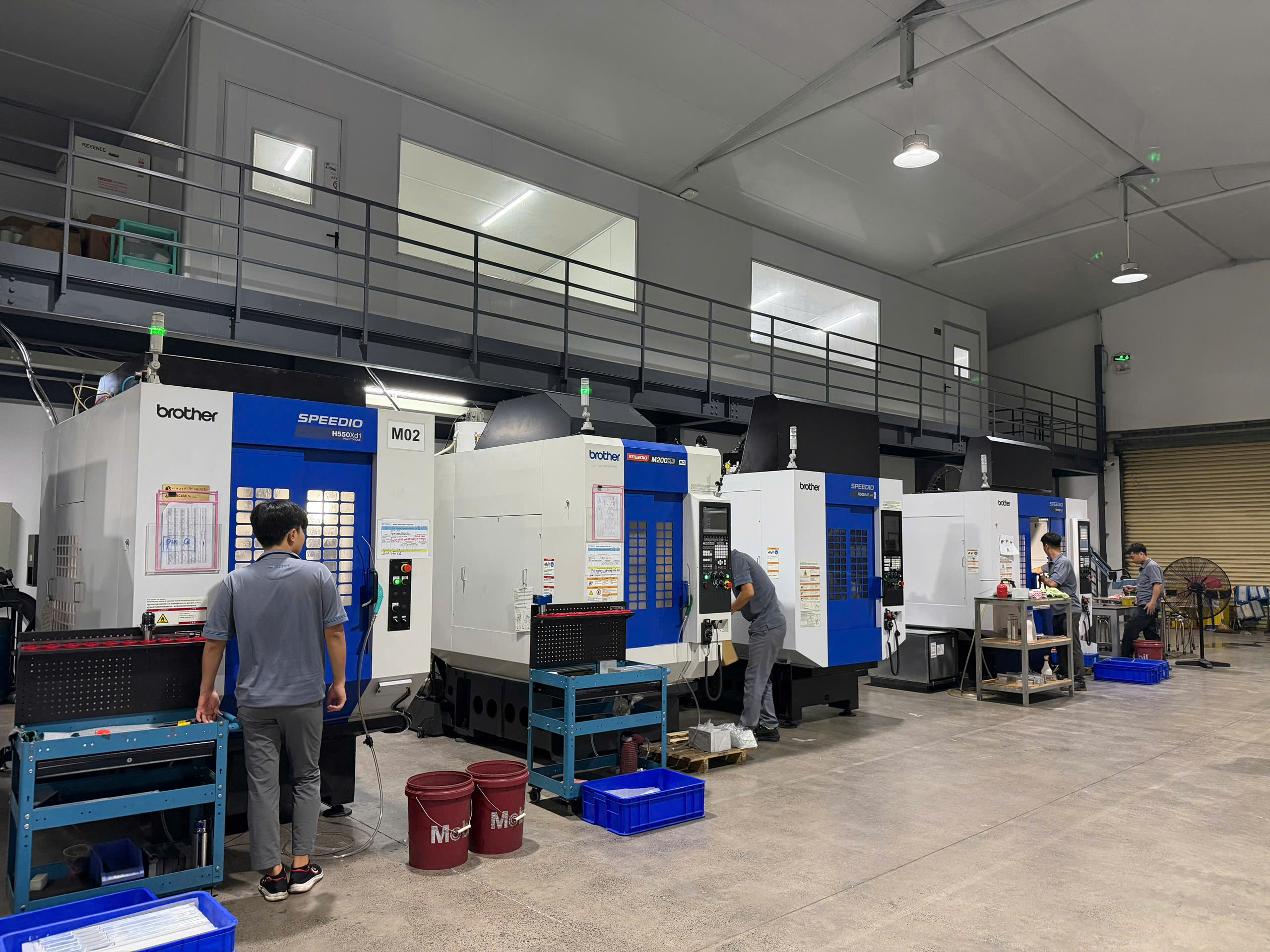

Row of Brother SPEEDIO machining centres

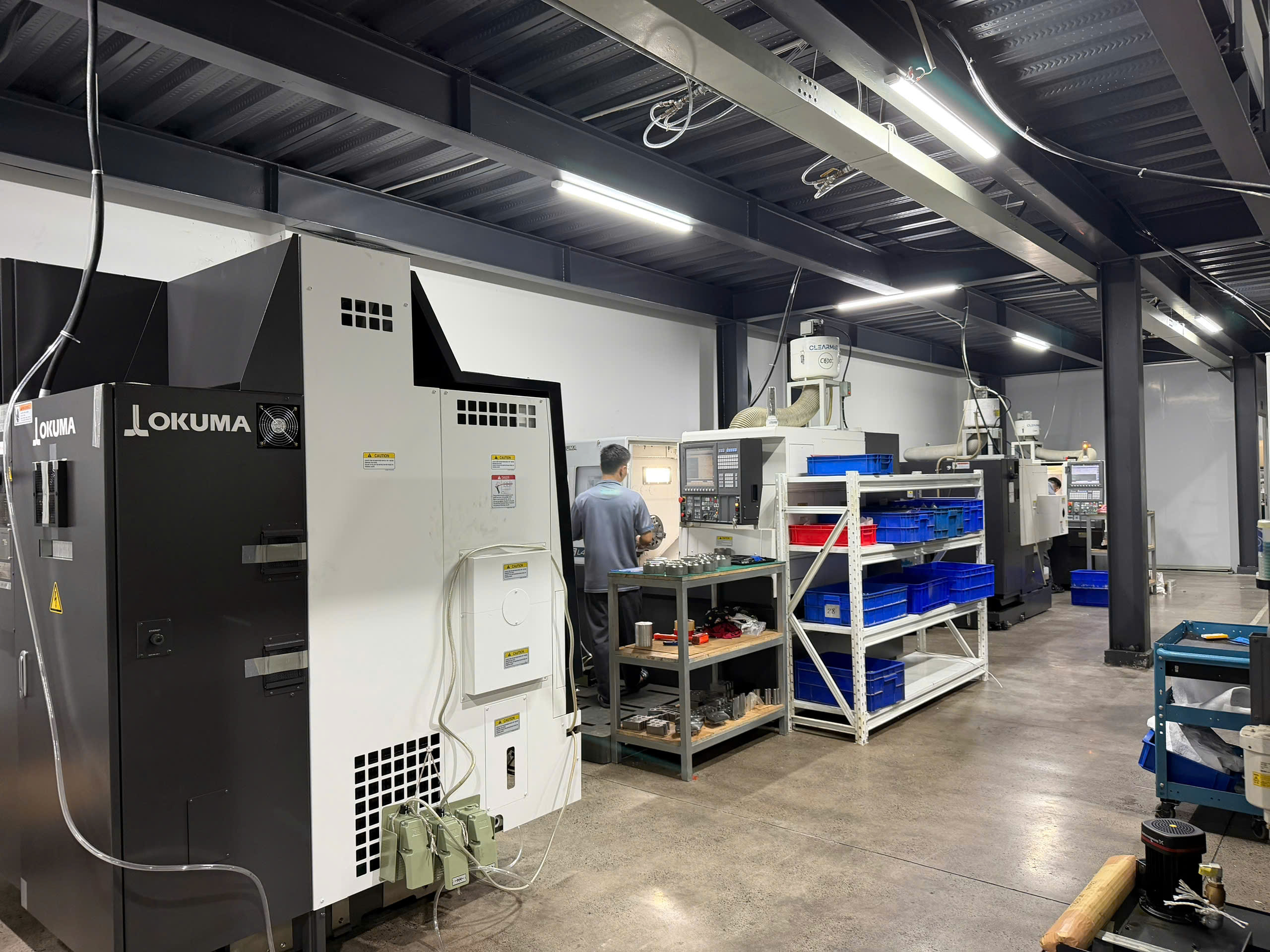

Row of Okuma CNC lathes on the shop floor

QC CAPABILITY

QC machine capability

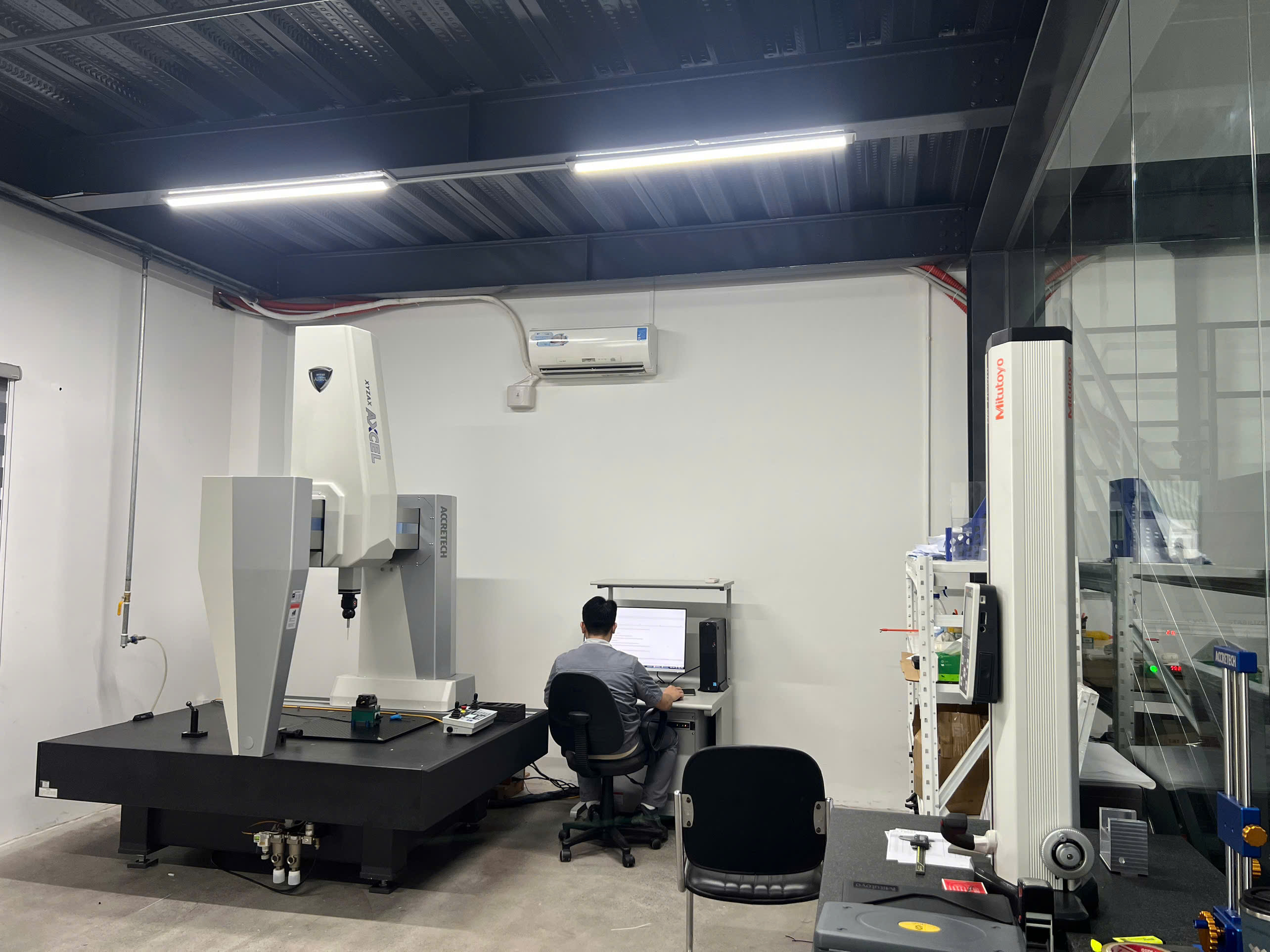

The measuring room is a separate glass-partitioned, air-conditioned space, so readings are not affected by dust or by temperature on the shop floor.

COORDINATE MEASURING

CMM measuring machine

An ACCRETECH XYZAX AXCEL coordinate measuring machine sits on a granite table and verifies dimensions, hole positions, flatness and squareness against the drawing. It is the primary instrument for accepting parts with tight tolerances, particularly semiconductor equipment components and aerospace parts.

MEASURING INSTRUMENTS

Height gauge and hand instruments

Alongside the CMM, the room holds a Mitutoyo height gauge together with hand instruments such as calipers, micrometers and dial indicators. These support quick in-process checks, catching deviation early rather than at final acceptance.

Instrument list

Brand	Machine
ACCRETECH	XYZAX AXCEL
Mitutoyo	Linear Height

How we control it

The first part of every batch is fully measured before production volume is released.
Measurement results are recorded and delivered with the parts whenever a customer requires quality records.
The measuring room is separated from running machines to keep vibration and dust away from the readings.
